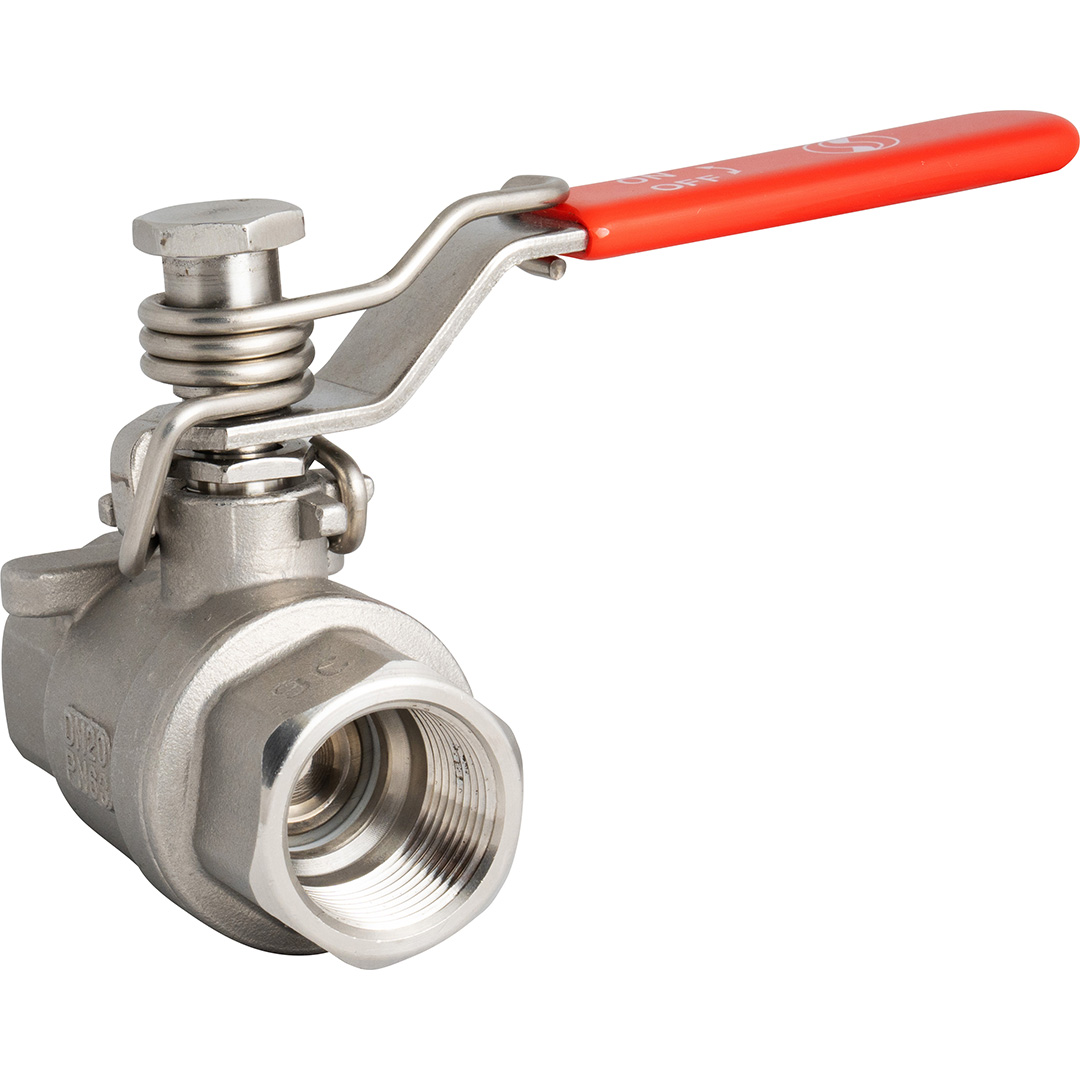

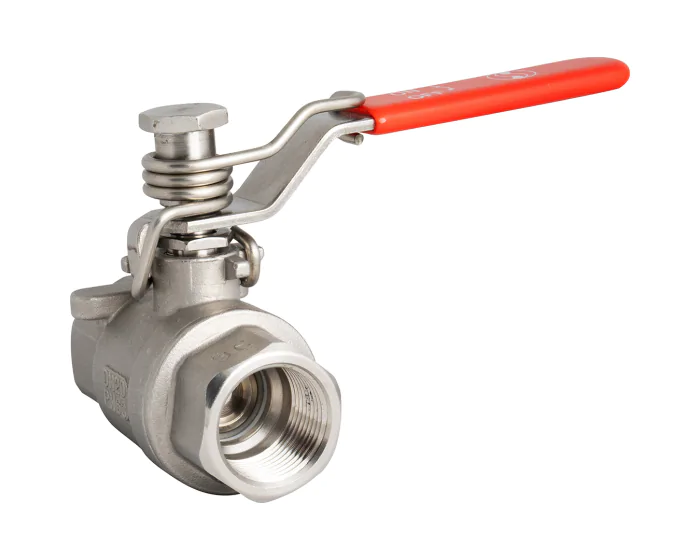

Syveco offers the Sferaco 7062 series 2-piece stainless steel ball valve with dead man's handle, spring return, BSP female/female connection, DIN3202 M3 spacing, full bore, PTFE packing gland, ATEX.
| Specification | Value |
|---|---|
| DN inches NPS | 1/4'' |
| Option certificate 3.1 | Yes |
| CE risk category | III Module H |
| Thread standard | ISO 228-1 |
| Stem sealing material | PTFE gland packing |
| Opening device | Handle |
| Application | Industry |
| ATEX atmosphere | Group II Cat. 2G/2D |
| Shaft/stem matérial | Stainless steel AISI 316 |
| ATEX compatible | Yes |
| DN | DN8 - 1/4'' |
| Fluid | Acids |
| Body material | Stainless steel CF8M (1.4408) |
| Number of ways | 2 |
| Bore | Full |
| ISO pad 5211 | No |
| Packing gland | Yes |
| PS (bar) | 63 |
| Connections | BSP FF |
| Seats | PTFE-Glass |
| Ball material | Stainless steel AISI 316 |
| Ball valve design | 2-piece body |
| Warranty period | 2 years |
| CE | Yes |
| Handle material | Stainless steel AISI 304 |
| Handle type | Red handle |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body 1/4'' | 706202 | S1006634 |
€14.66
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body 3/8'' | 706203 | S1006635 |
€15.09
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body 1/2'' | 706204 | S1006636 |
€16.31
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body 3/4'' | 706205 | S1006637 |
€21.29
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body 1'' | 706206 | S1006638 |
€30.57
(excl. btw)
|
add to cart |
